Safety Cables

Redundant Backup Safety Cables

Cable Style A

Retaining Washers on Both

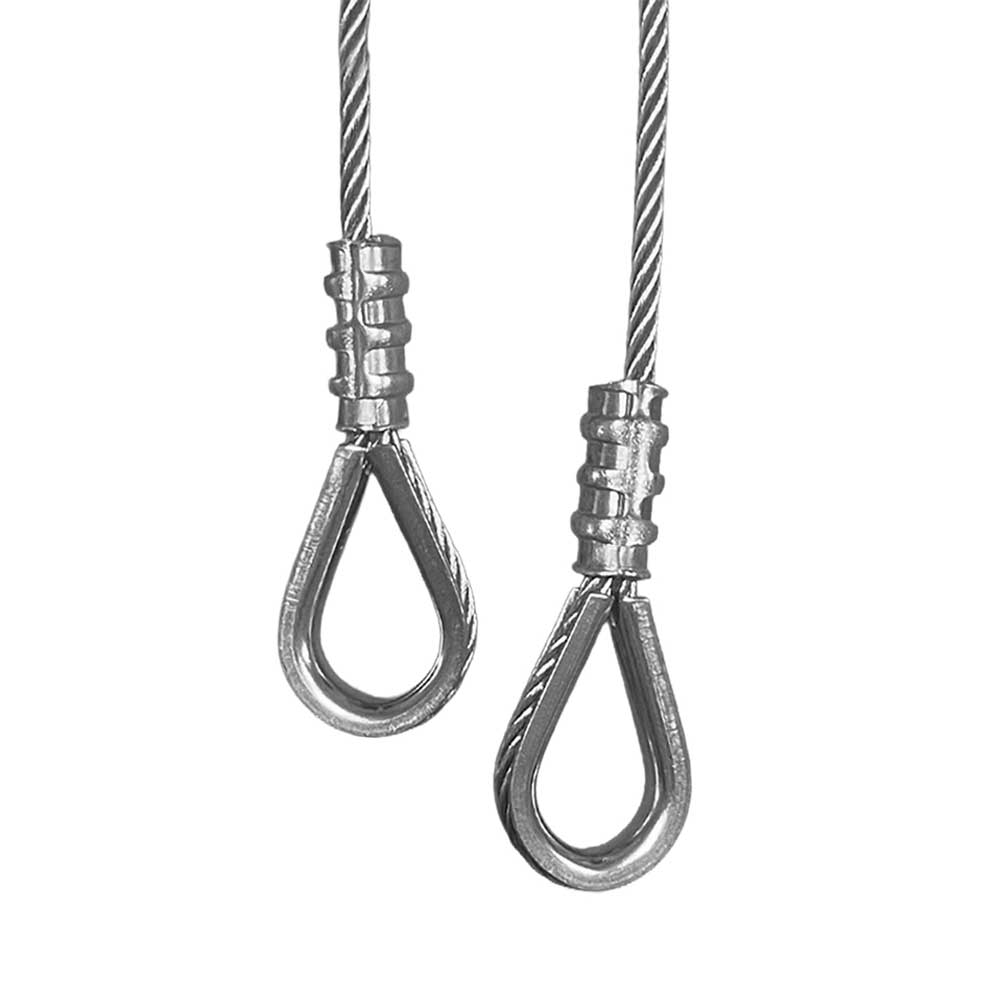

Cable Style B

Finished Ends with Thimbles

Cable Style C

Loop + Retaining Washer

Cable Style D

Loop on Both Ends

Cable Style E

Adjustable Safety Cable

Model #

Length
(Loop to Loop) Inches/mm

Indoor

Outdoor

Description
QTY &
Contents

Material

Light
Duty

Med
Duty

Static
WLL
(lbs/kg)

Style

CC-096	8/99	✓		(1) 8 foot stainless wire rope (2) pcs Tie wrap 4” long (2) 1/4” Shackle (1) Clutch lock mechanism (1) Eye nut 3/8”	Black Oxide		✓	220/99.8	E
CC-096-S	8/99		✓	(1) 8 foot stainless wire rope (2) pcs Tie wrap 4” long (2) 1/4” Shackle (1) Clutch lock mechanism (1) Eye nut 3/8”	Stainless Steel		✓	220/99.8	E
SC-009	9/229	✓		(1) 1/6” 7X7	Galvanized Steel	✓		60/27	D
SC-012	12/305	✓		(1) 3/32” 7X7 (2) retaining washer	Galvanized Steel	✓		100/45	A
SC-016	16/406	✓		(1) 3/32” 7X7 (2) retaining washer	Galvanized Steel	✓		100/45	A
SC-016-B	16/406	✓		(1) 3/32” 7X7 (2) retaining washer	Galvanized Steel	✓		100/45	A
SC-025	25/635	✓		(1) 3/32” 7X7 (2) retaining washer	Galvanized Steel	✓		100/45	A
SC-025-B	25/635	✓		(1) 3/32” 7X7 (2) retaining washer	Galvanized Steel	✓		100/45	A
SC-040	40/1016	✓		(1) 3/32” 7X7 (2) retaining washer	Galvanized Steel	✓		100/45	A
SC-080	80/2032	✓		(1) 3/32” 7X7 (1) 1/4” quick link (2) retaining Washers	Galvanized Steel	✓		100/45	A
SC-154	154/3912	✓		(1) 3/32” 7X7 (1) 1/4” quick link	Galvanized Steel	✓		100/45	D
SC-018	18/457	✓		(1) 3/32” 7X7 (1) retaining washer	Stainless Steel Black	✓		100/45	C
SC-018-BC	18/457	✓		(1) 3/32” 7X7 (1) retaining washer	Stainless Steel Black	✓		100/45	C
SC-024-BC	24/609	✓		(1) 3/32” 7X7 (1) retaining washer	Stainless Steel Black	✓		100/45	C
SC-040-BC	40/1016	✓		(1) 3/32” 7X7 (1) retaining washer	Stainless Steel Black	✓		100/45	C
SC-072-BC	72/1828	✓		(1) 3/32” 7X7 (1) retaining washer	Stainless Steel Black	✓		100/45	C
SC-080-BC	80/2032	✓		(1) 3/32” 7X7 (1) retaining washer	Stainless Steel Black	✓		100/45	C
SC-096-BC	96/2468	✓		(1) 3/32” 7X7 (1) retaining washer	Stainless Steel Black	✓		100/45	C
SC-180	180/4572	✓		(1) 3/32” 7X7 (1) 1/4” quick link (2) retaining Washers	Stainless Steel Black	✓		100/45	C
SC-188-18-SS	18”/450	✓	✓	3/16” Wire Rope 7X19 (2) 1/4” Shackle	Stainless Steel		✓	750/ 340	B
SC-188-24-SS	24”/610	✓	✓	3/16” Wire Rope 7X19 (2) 1/4” Shackle	Stainless Steel		✓	750/ 340	B
SC-188-30-SS	30”/762	✓	✓	3/16” Wire Rope 7X19 (2) 1/4” Shackle	Stainless Steel		✓	750/ 340	B
SC-188-48-SS	48”/1220	✓	✓	3/16” Wire Rope 7X19 (2) 1/4” Shackle	Stainless Steel		✓	750/ 340	B
SC-188-72-SS	72”/1830	✓	✓	3/16” Wire Rope 7X19 (2) 1/4” Shackle	Stainless Steel		✓	750/ 340	B
SC-188-96-SS	96”/2438	✓	✓	3/16” Wire Rope 7X19 (2) 1/4” Shackle	Stainless Steel		✓	750/ 340	B
