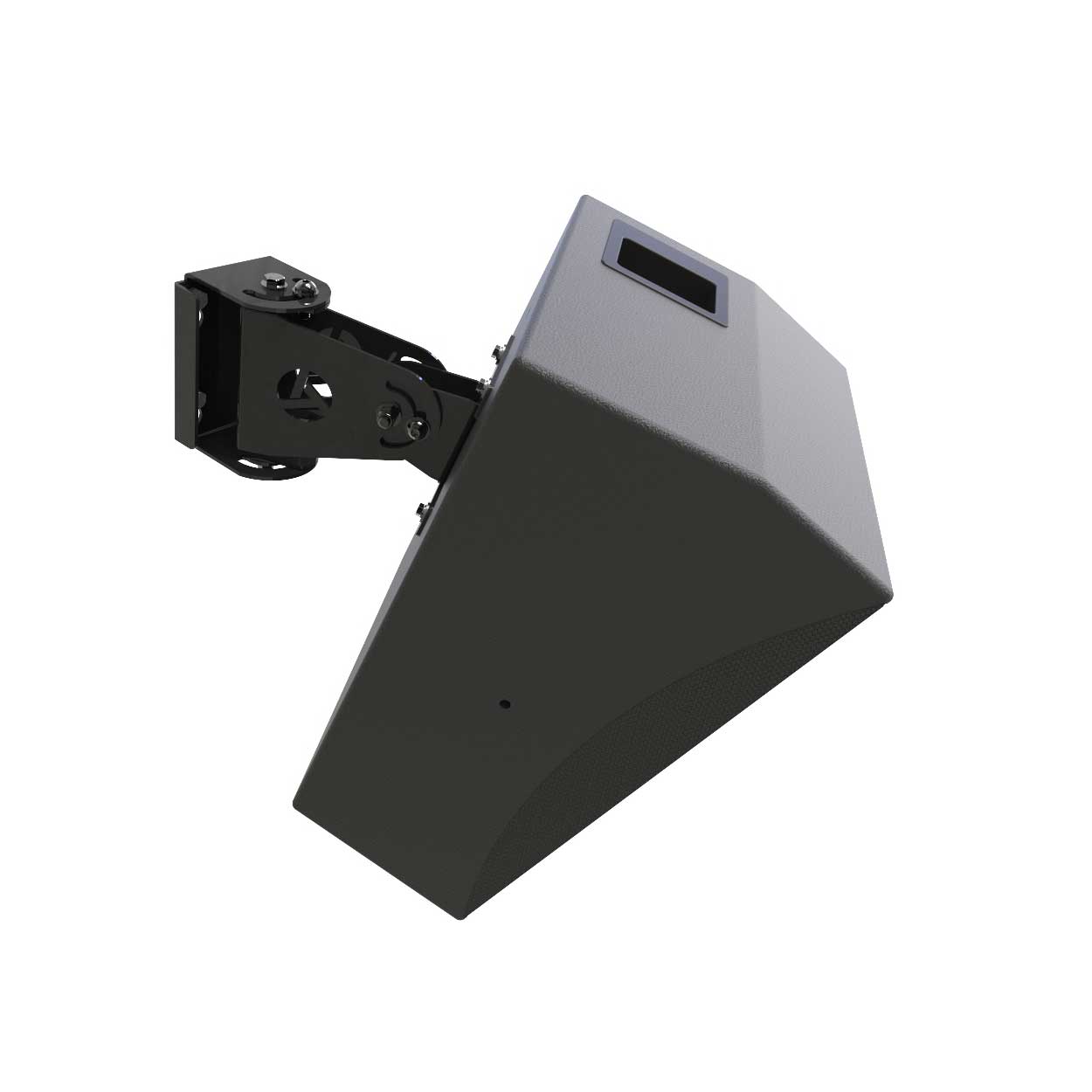

The MM-060-V2 Surround Wall Mount offers a smaller footprint compared with its predecessor, the MM-060 and keyhole slots in the wall mounting bracket allow for single-man installations.
Angle indicators show precisely where a speaker is aimed, saving the time needed to take acoustic measurements. Once the speaker is aimed in the desired direction, both pan and tilt angles lock down permanently
Datasheet InstallationPDF Reader| Material: Structural Steel | |
| Finish: Powder Coat | |
| Color: Black | |
| Tilt Adjustment: 45 degrees | |
| Swivel Adjustment: 180 degrees | |
| WLL: 60 lbs. (27.3 Kg) max. | |
| Design Factor: 5:1 | |
| Net Wgt: 6.1 lbs. (2.8 Kg.) each | |
| Shipping Weight: 8 lbs. (3.6 Kg.) each | |
| Pack Count: 1 units / carton |
