StrutWall™ Universal LED Video Wall Framing

StrutWall LED pixel panels being installed on cabinet frames
Universal LED video wall framing

Framing hardware for indoor LED walls

Build with locally sourced strut and Adaptive’s adjustable framing hardware for front-access LED cabinets. LED screens and strut are supplied separately. Plan your hardware list below, then request a project hardware quote and cabinet compatibility review.

Planning access for future maintenance? Read our front-service LED mounting checklist before selecting a frame.

Source locallyUse common strut channel
Estimate quicklyCalculate a preliminary system
Adjust preciselyAlign in X, Y and Z

Scalable StrutWall framing

Build any size video wall. Reconfigure it later without discarding the frame.

Contractor-supplied strut channel and Adaptive’s adjustable hardware create a modular frame that can be reconfigured if the LED wall size changes.

Precise X, Y and Z adjustmentIndoor version; outdoor not availableWorks with both 7/8-inch and 1-5/8-inch strutFront-access LED cabinets

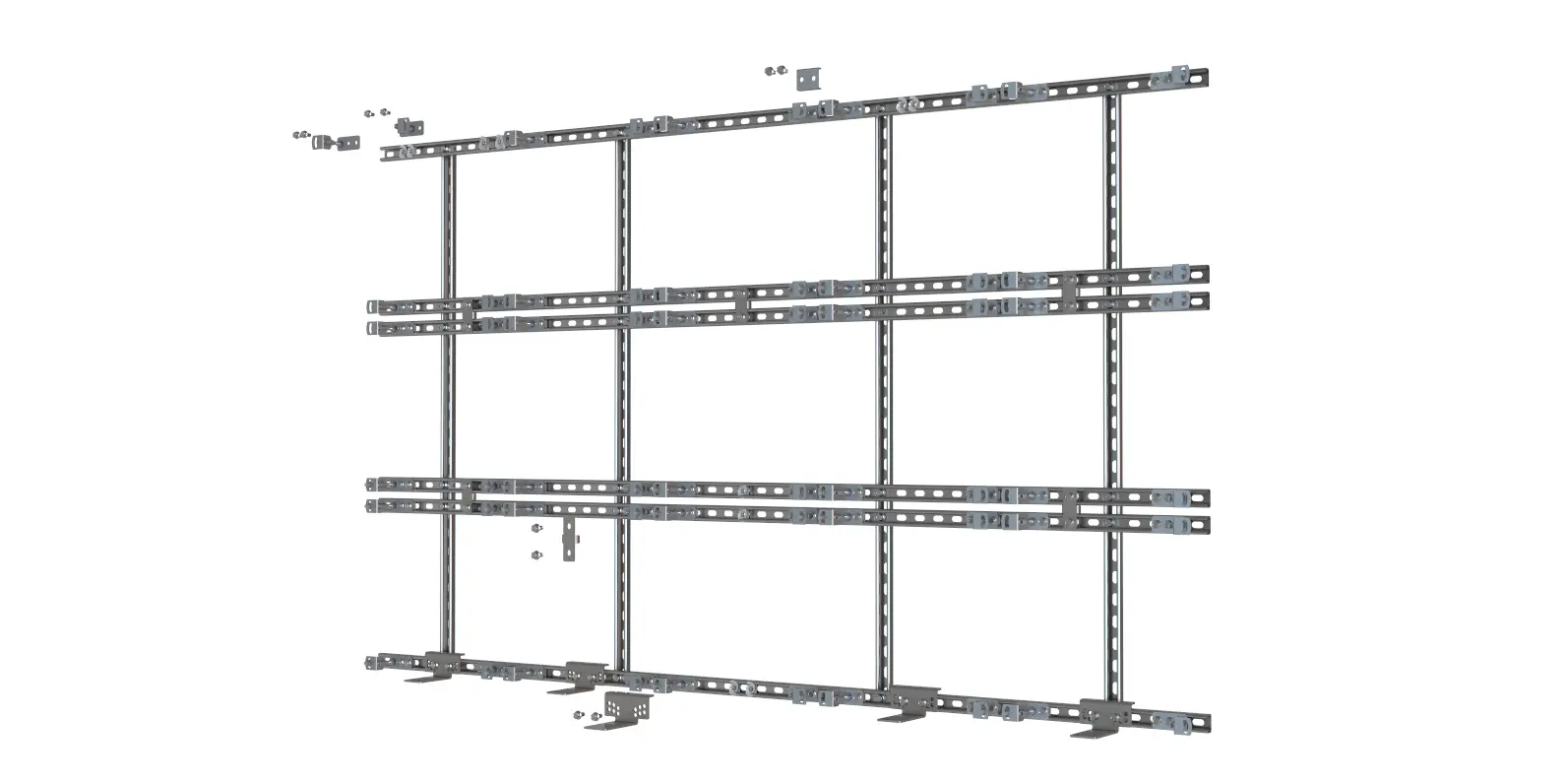

StrutWall 5-by-3 LED video wall strut frame with vertical struts

Vertical struts are optional.

Find the right configuration

Configure StrutWall around the LED wall.

Experiment with different LED cabinet sizes and video wall configurations until you find the right match. Then add the selected configuration to the Project Cart.

Step 1Add your contact info
Step 2Configure StrutWall size
Step 3Review and add
Step 4Submit Video Wall Frame

Step 1 · Customer details

Who are we helping with this project?

Enter these details once. They will remain connected to the StrutWall configuration throughout the Project Cart process.



Continuing opens the calculator and carries these details forward so they do not need to be entered again.

Installation sequence

See how the system comes together.

Build the strut frame, mount and align the cabinet frames, then install the LED panels.

StrutWall strut frame assembly and mounting hardware

01 · Build

Assemble the strut frame

Lay out the contractor-supplied strut and align using StrutWall mounting hardware.

Vertical struts are optional.

StrutWall cabinet frames being installed on strut rails

02 · Mount

Install cabinet frames

Set the LED cabinet frames onto the adjustable StrutWall mounts and establish LED alignment.

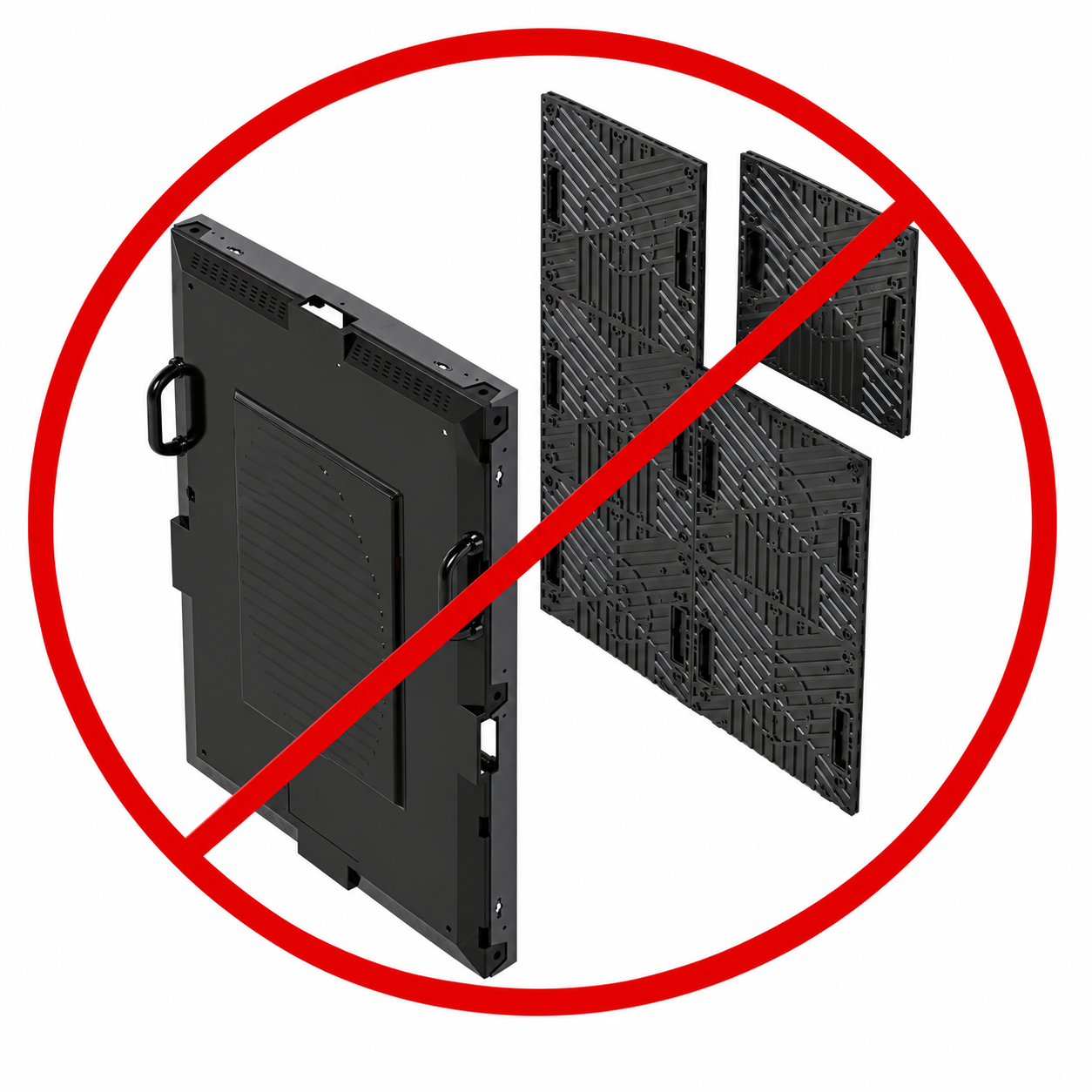

Rear-access cabinet with red prohibition symbol
Rear-access: not compatible

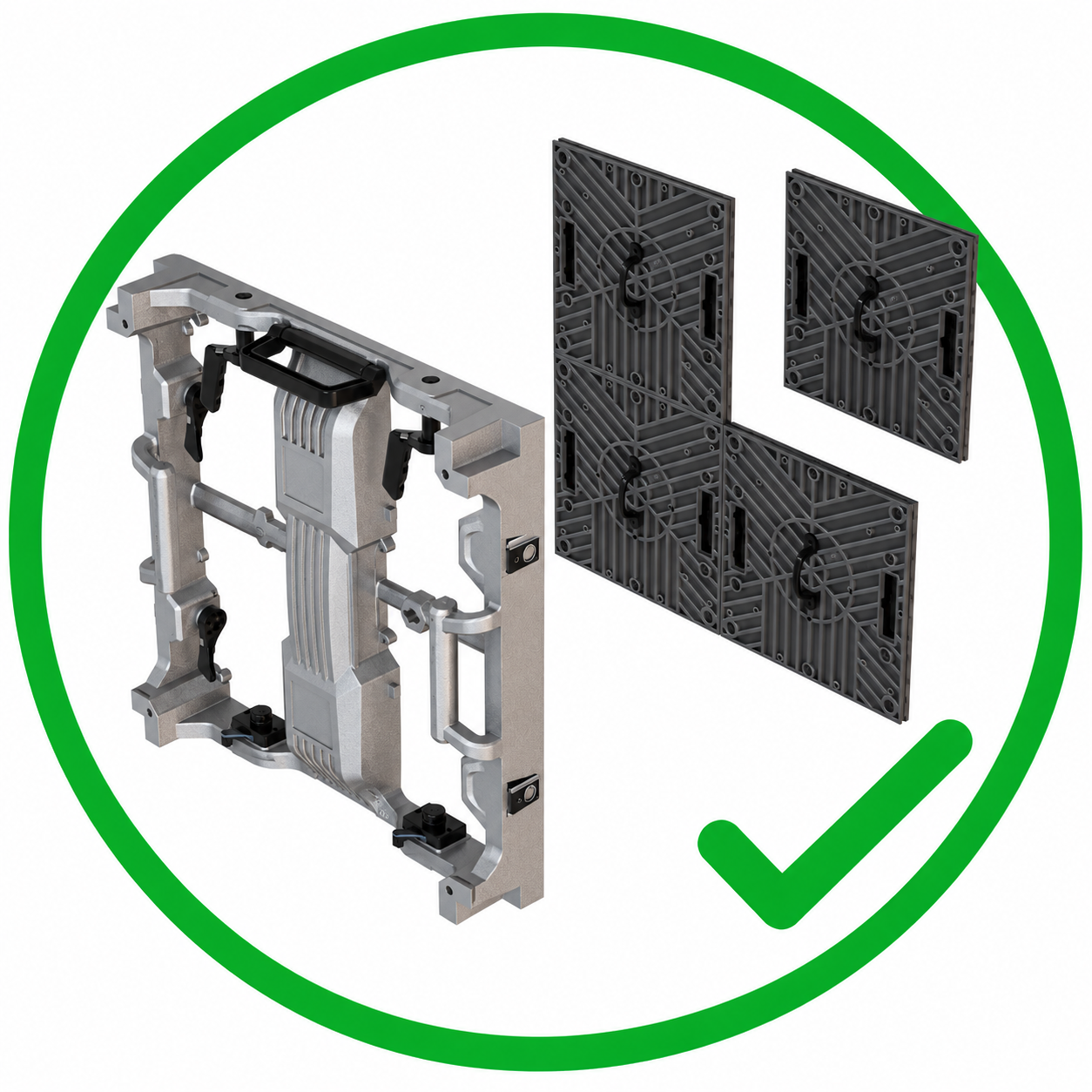

Front-access cabinet with green check symbol
Front-access cabinets: compatibility review required

Provide the LED manufacturer and exact model for Adaptive’s cabinet compatibility review.

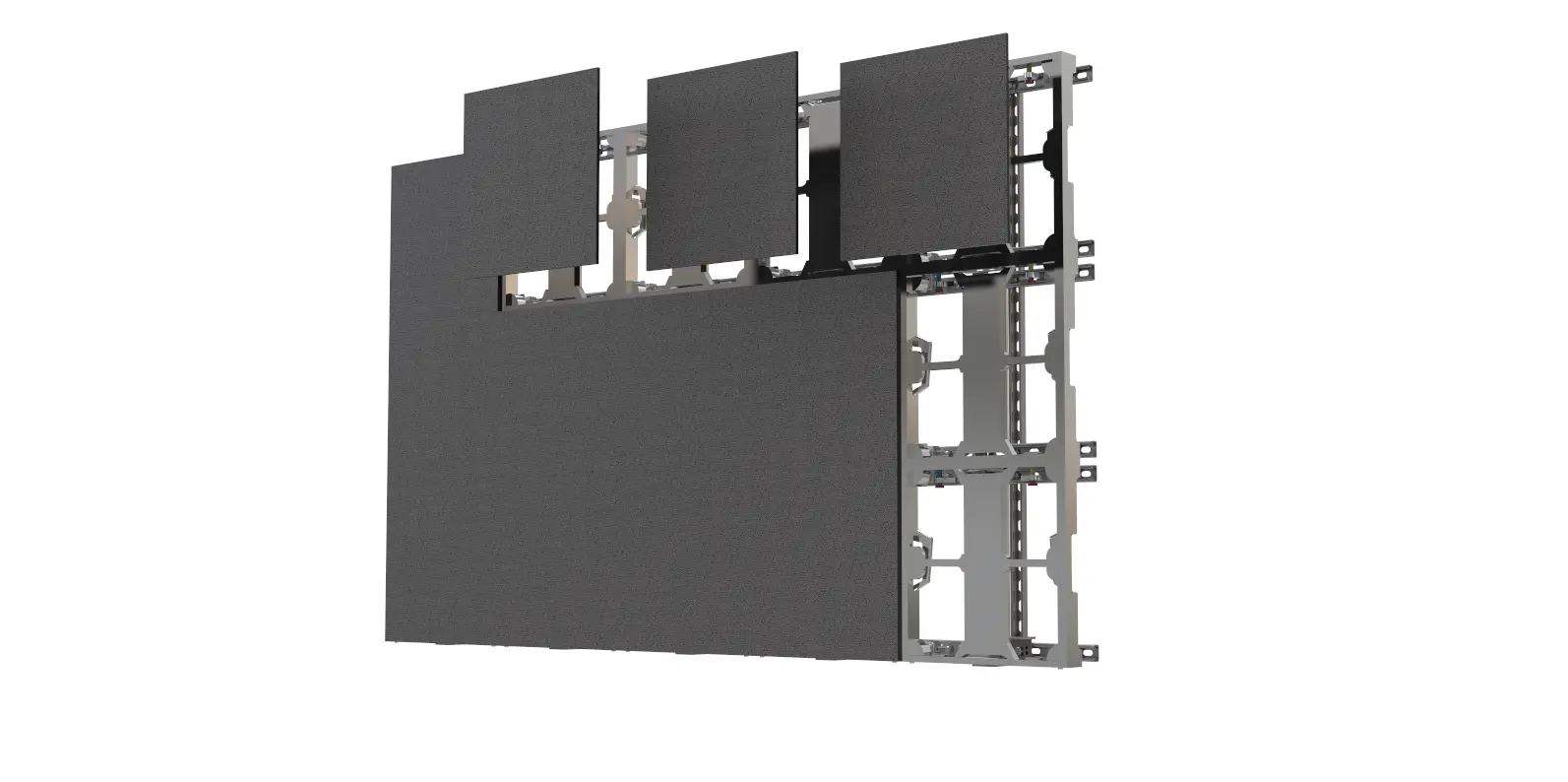

LED pixel panels being installed on the StrutWall frame

03 · Finish

Install LED panels

Complete the display after the cabinet structure has been aligned and secured.

System components

Purpose-built adjustable hardware for faster, repeatable framing.

Review the StrutWall components and open a dimensional drawing when additional detail is needed.

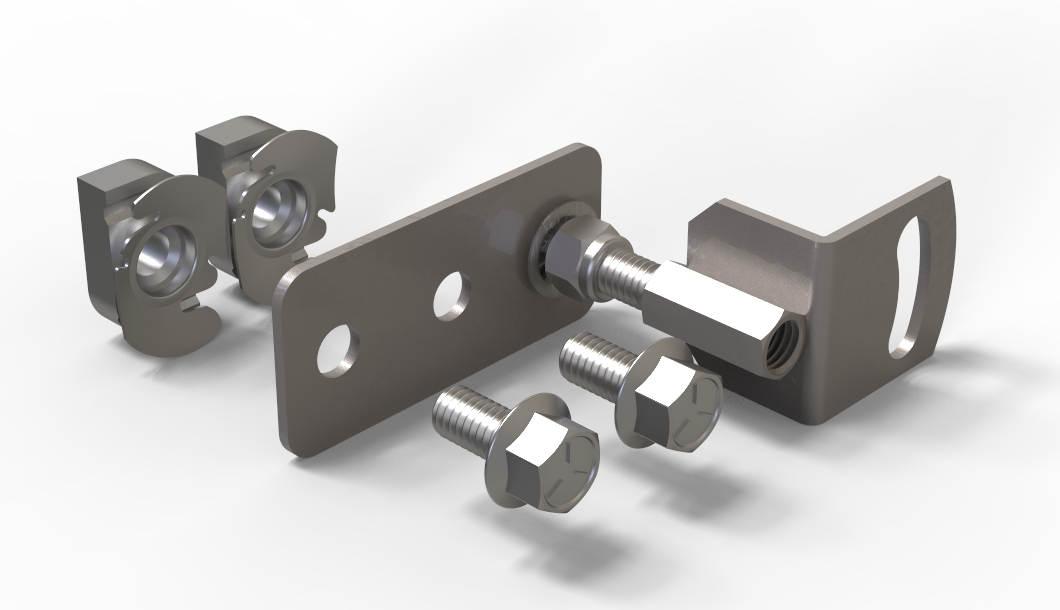

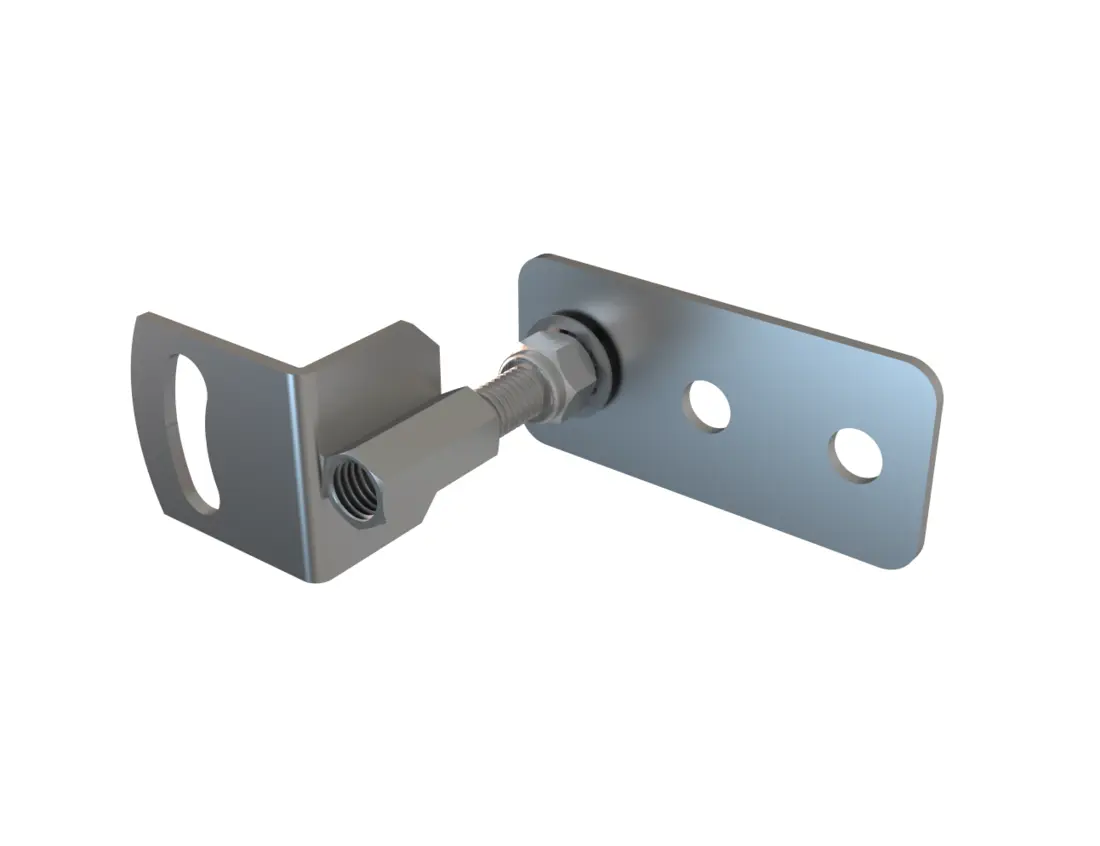

StrutWall left and right LED mount component

Left / Right LED Mount

SW-LR-MNT-Z · INDOOR   |   SW-LR-MNT-S · OUTDOOR — NOT AVAILABLE

Secures the outside mounting holes of the left and right LED cabinet columns.

View dimensions

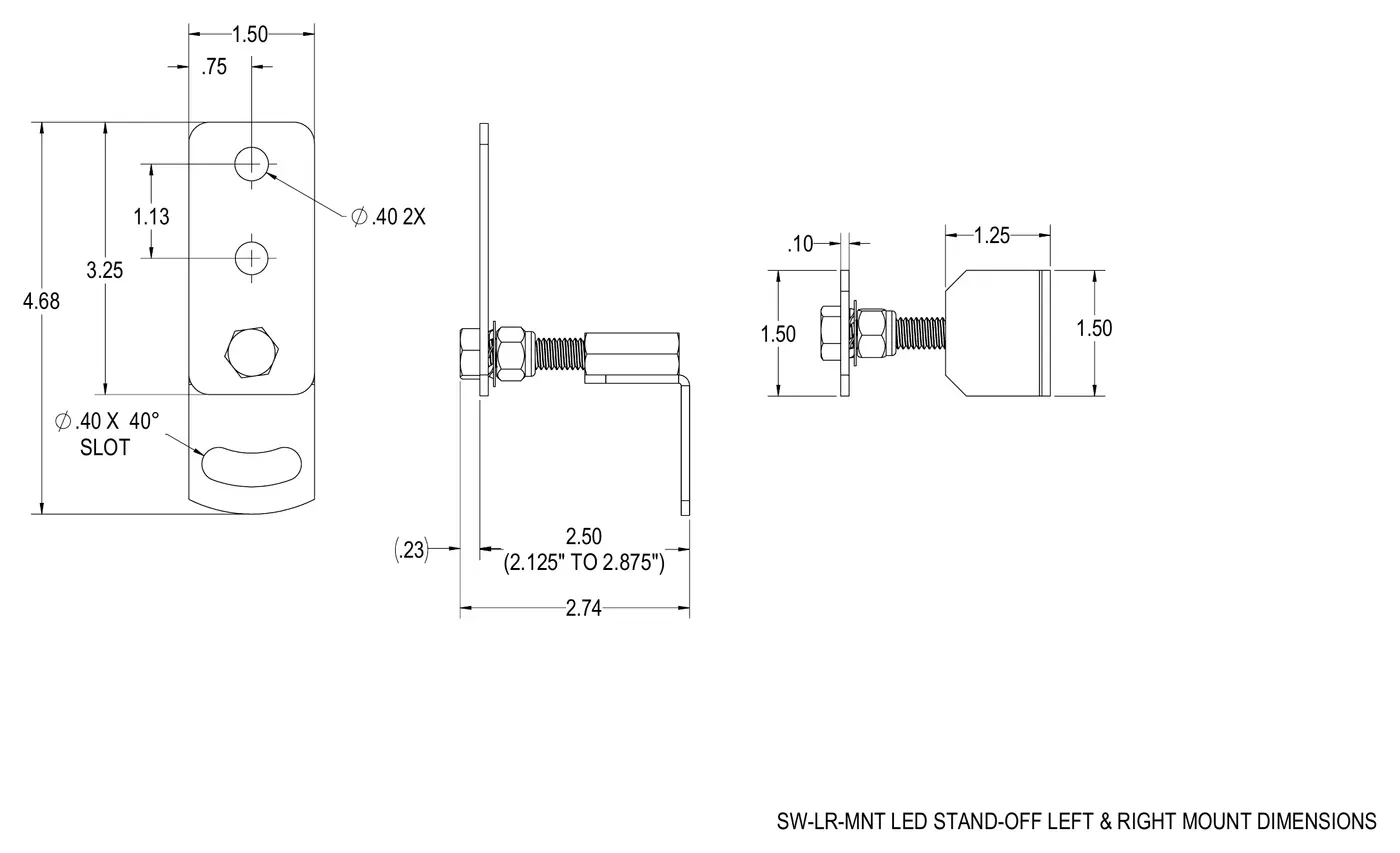

Dimensional drawing for the StrutWall left and right LED mount

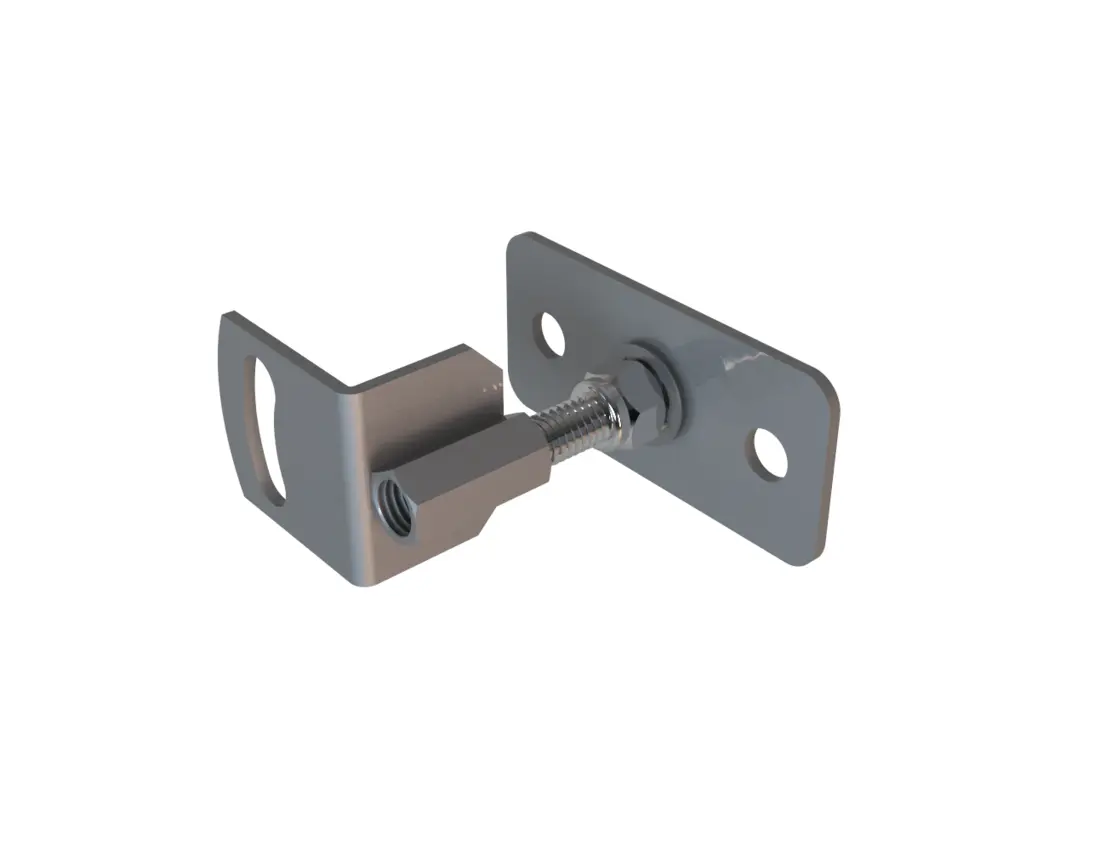

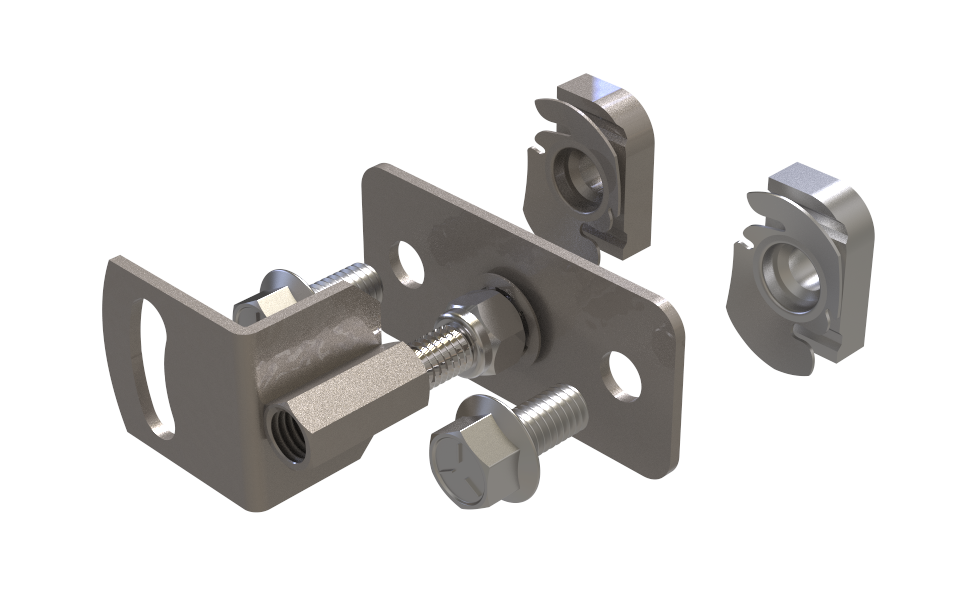

StrutWall center LED mount component

Center LED Mount

SW-CM-MNT-Z · INDOOR   |   SW-CM-MNT-S · OUTDOOR — NOT AVAILABLE

Secures cabinet mounting points between columns and provides X, Y and Z adjustment.

View dimensions

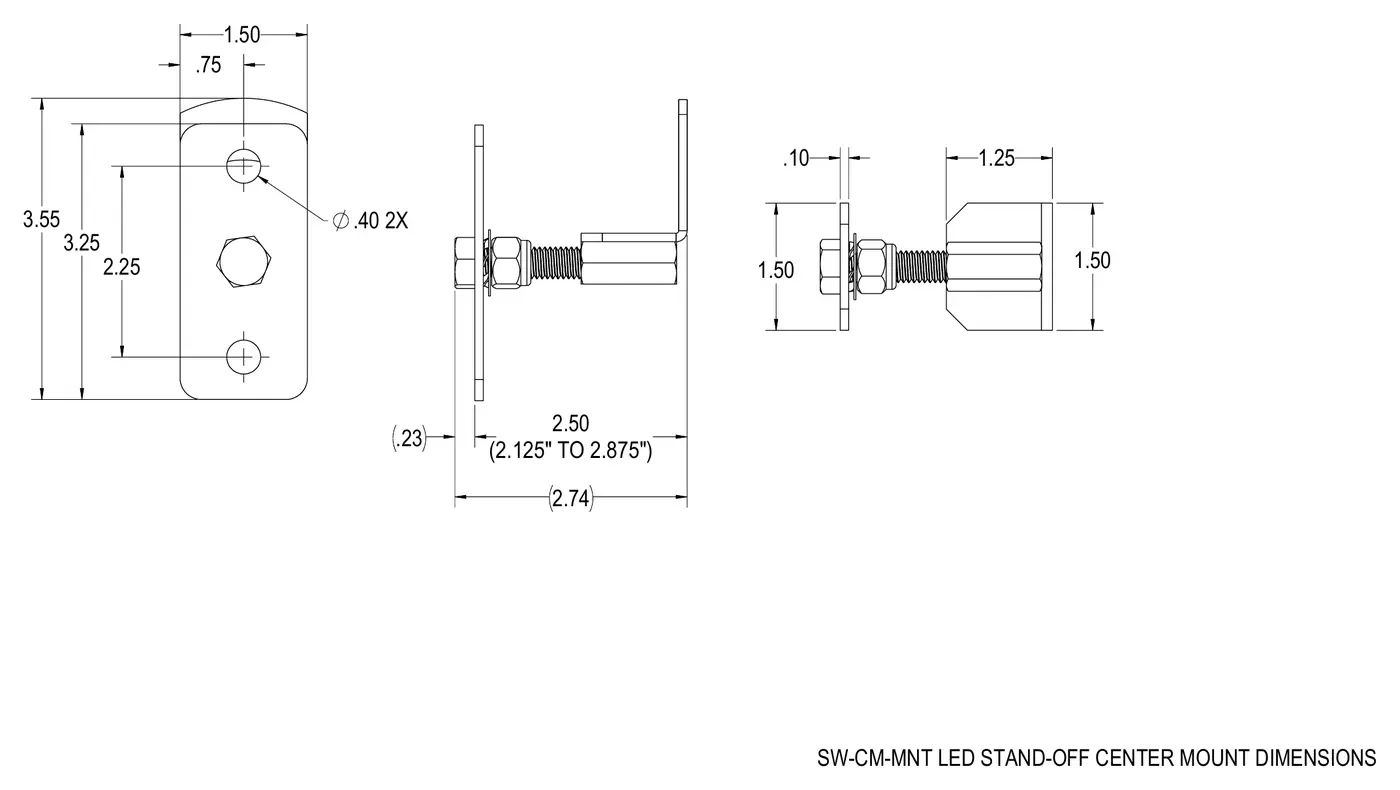

Dimensional drawing for the StrutWall center LED mount

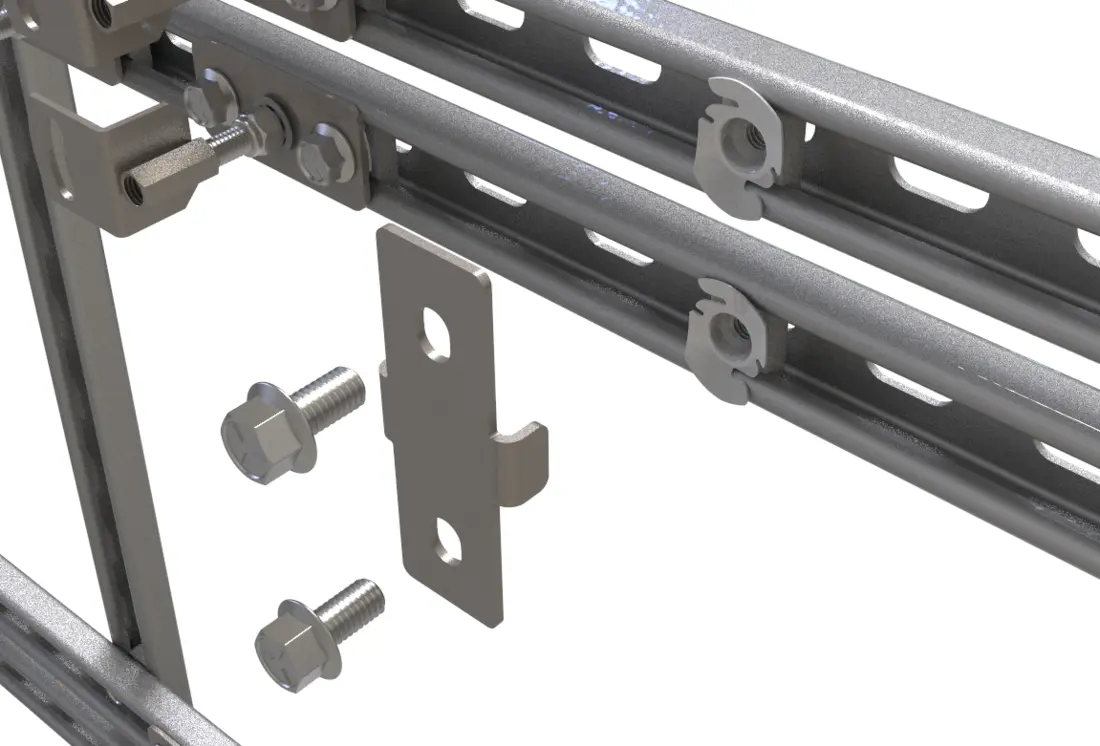

StrutWall horizontal spacer installed on strut channel

Horizontal Spacer

SW-HS-CSTM-Z · INDOOR   |   SW-HS-CSTM-S · OUTDOOR — NOT AVAILABLE

Sets the model-specific distance between horizontal struts and helps keep them parallel.

View dimensions

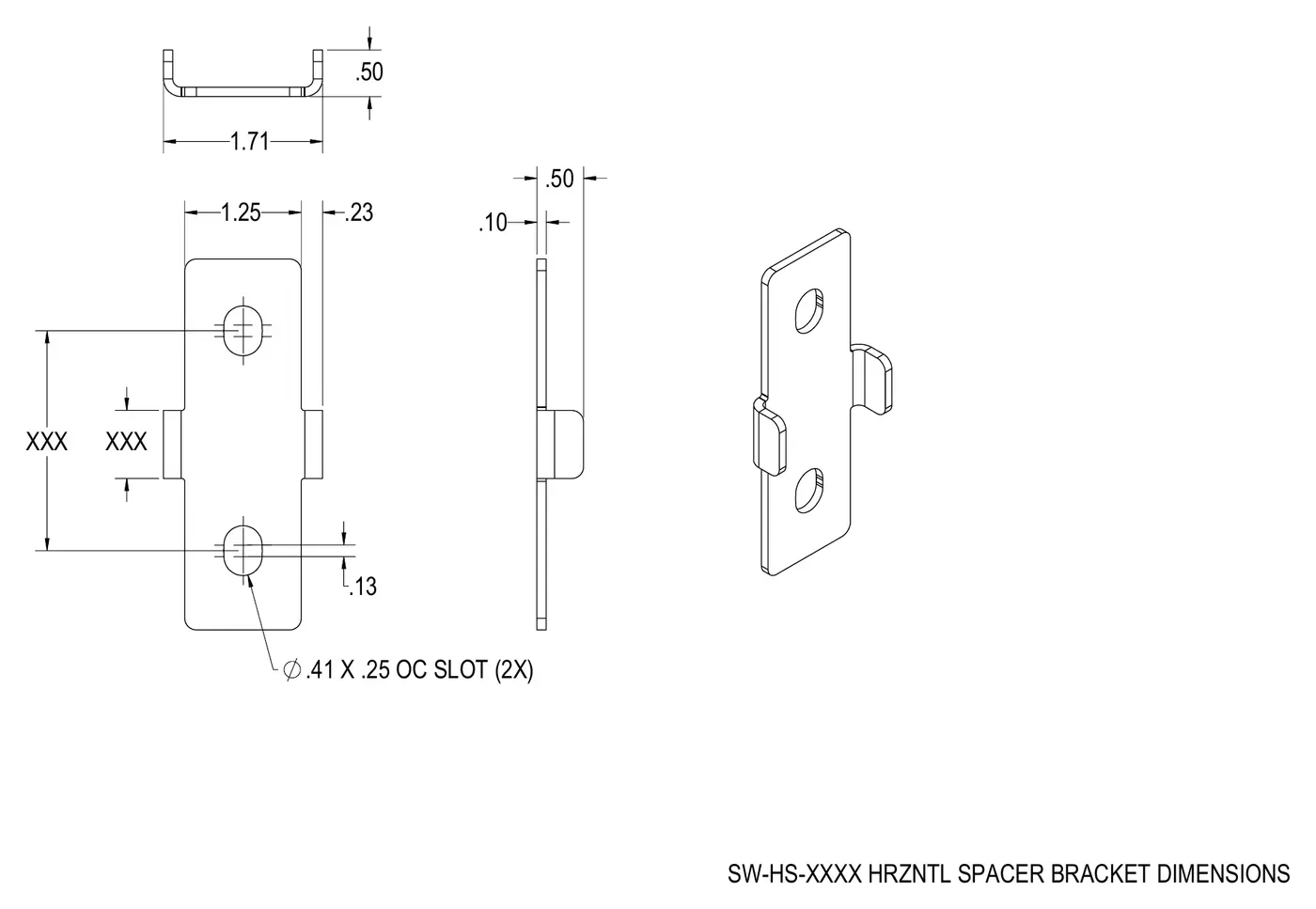

Dimensional drawing for the StrutWall horizontal spacer

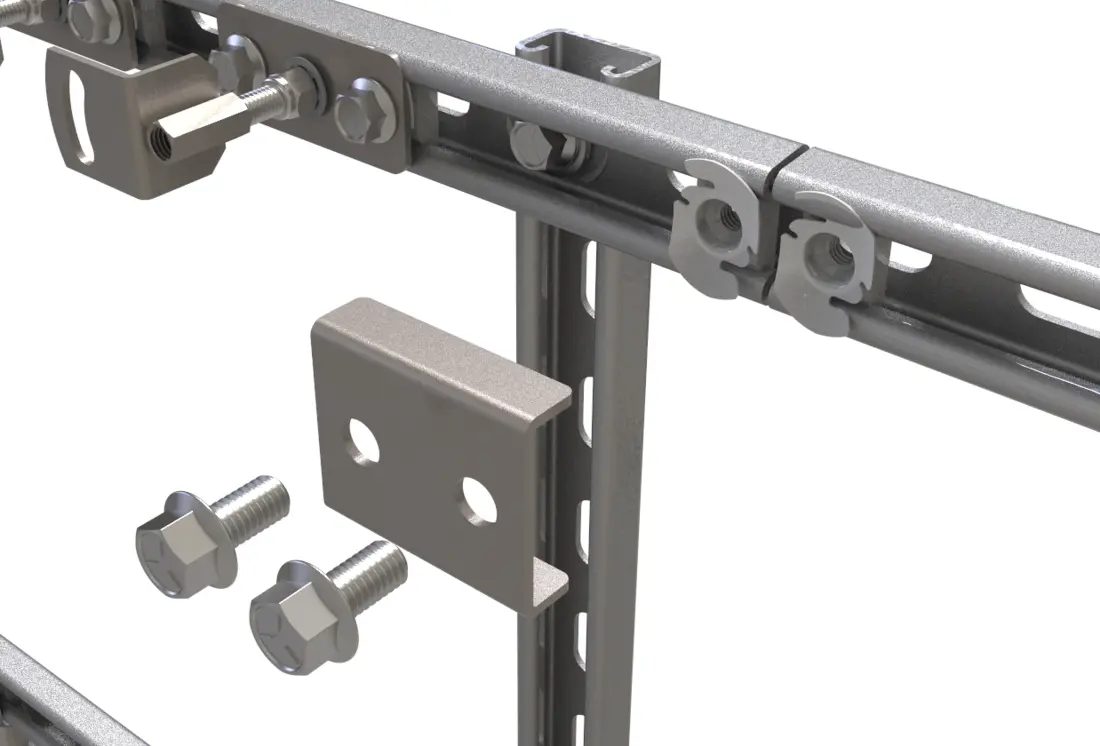

StrutWall end-to-end joiner bracket installed on strut channel

End-to-End Joiner Bracket

SW-E2E-BRKT-Z · INDOOR   |   SW-E2E-BRKT-S · OUTDOOR — NOT AVAILABLE

Joins strut channels for larger frames longer than 10 feet (3050 mm).

View dimensions

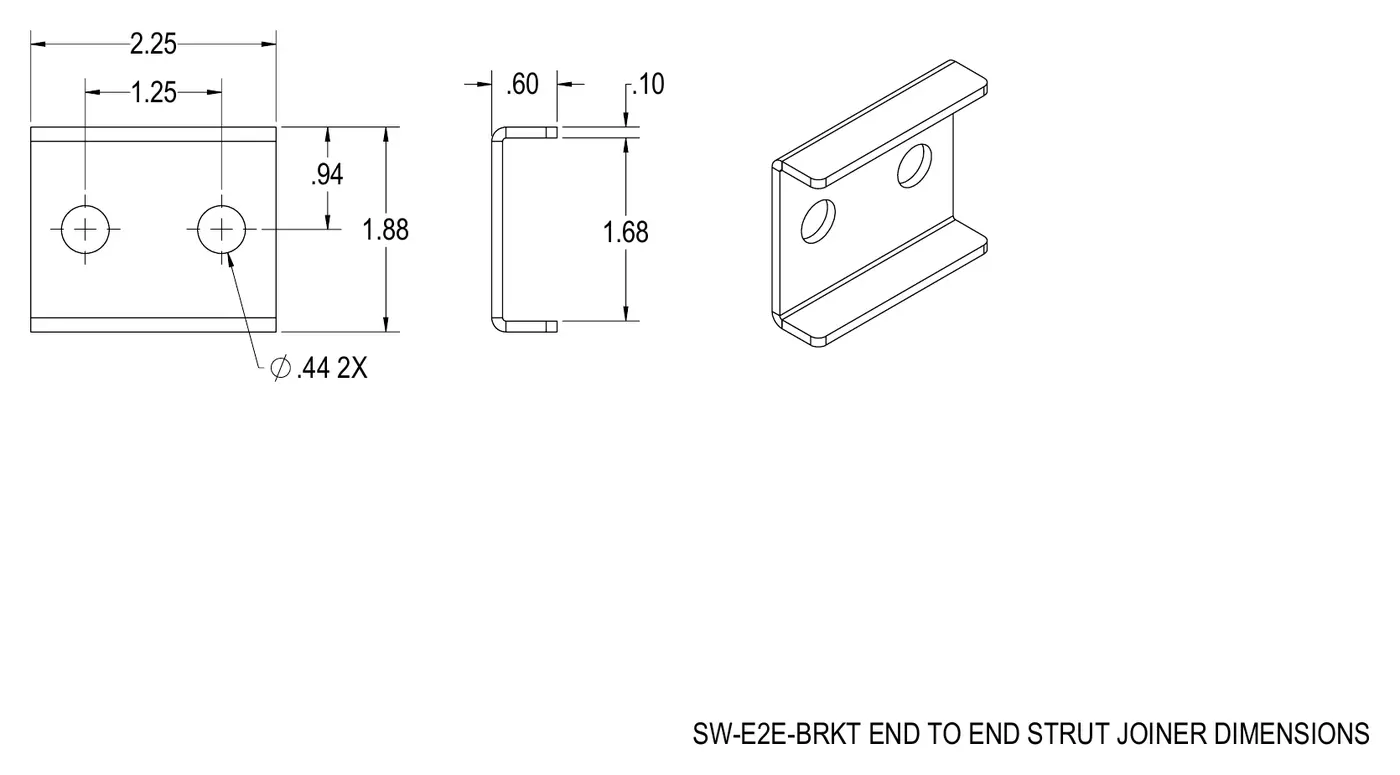

Dimensional drawing for the StrutWall end-to-end joiner bracket

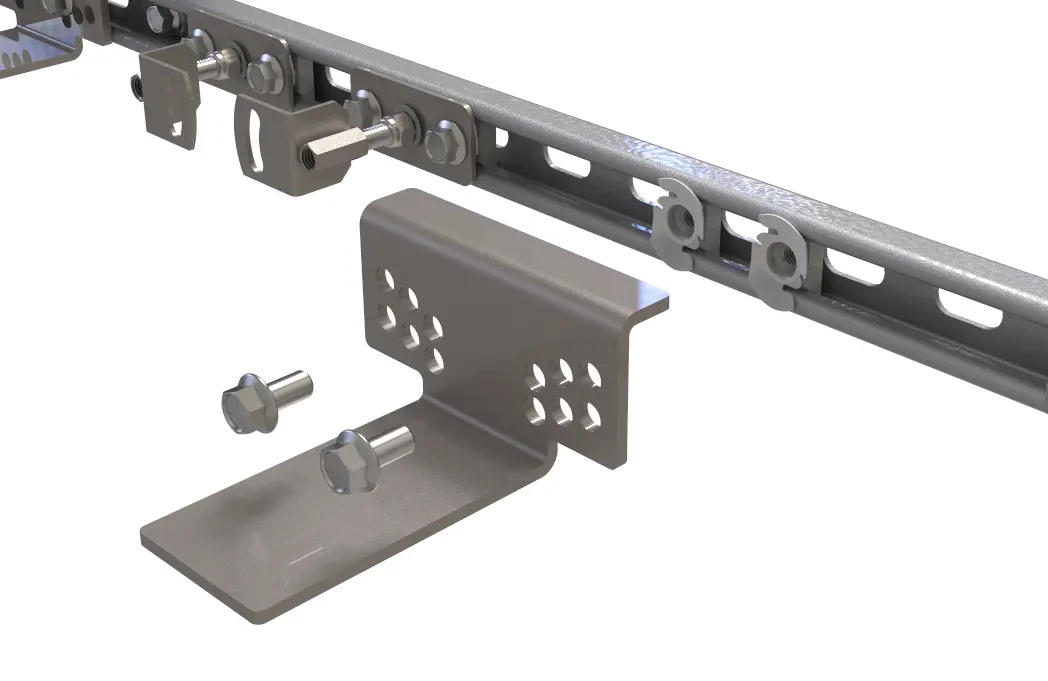

StrutWall landing bracket installed at the bottom of the frame

Landing Bracket

SW-LB-CSTM-Z · INDOOR   |   SW-LB-CSTM-S · OUTDOOR — NOT AVAILABLE

Helps establish and align the first, bottom tier of LED cabinets.

View dimensions

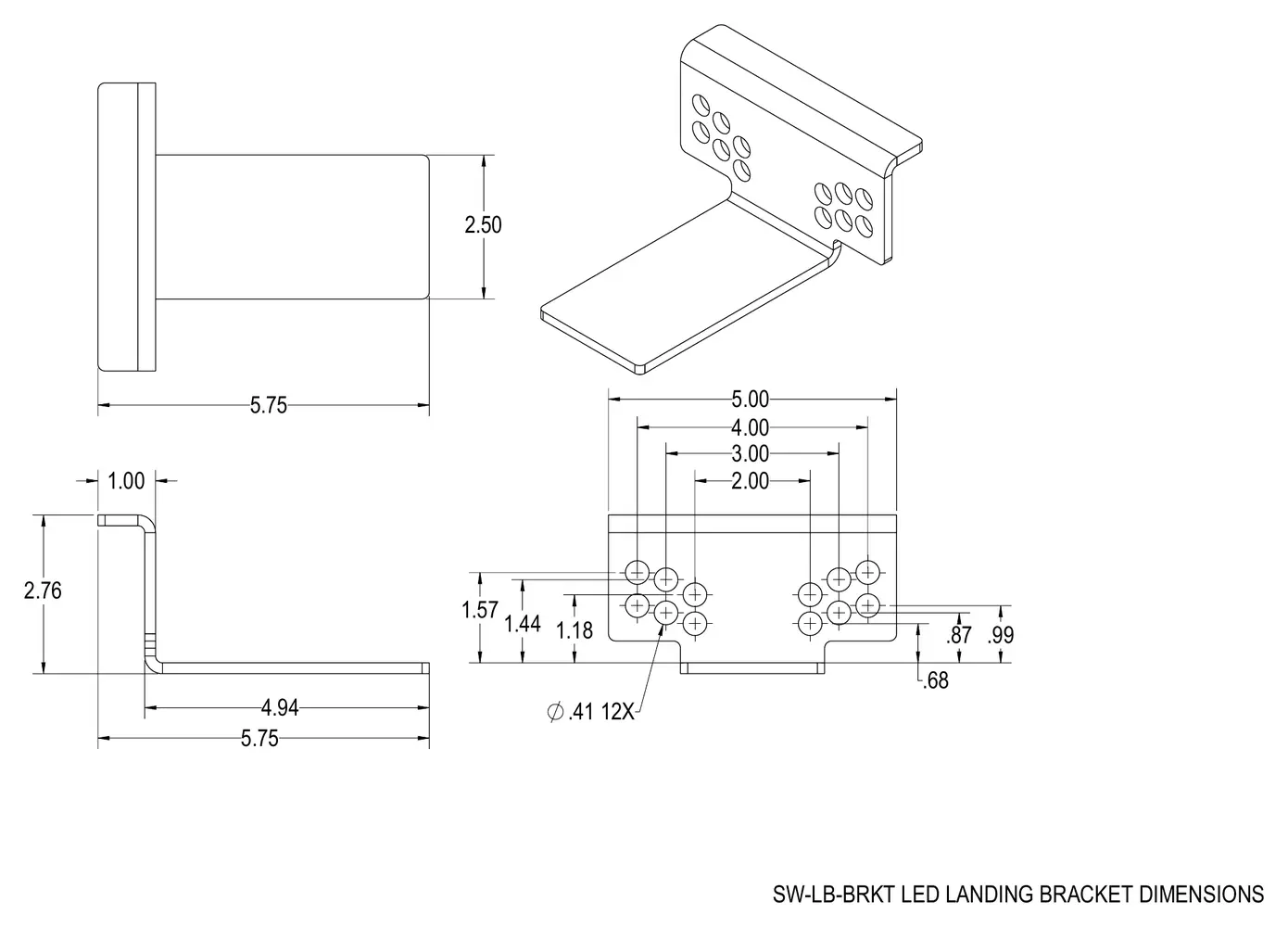

Dimensional drawing for the StrutWall landing bracket

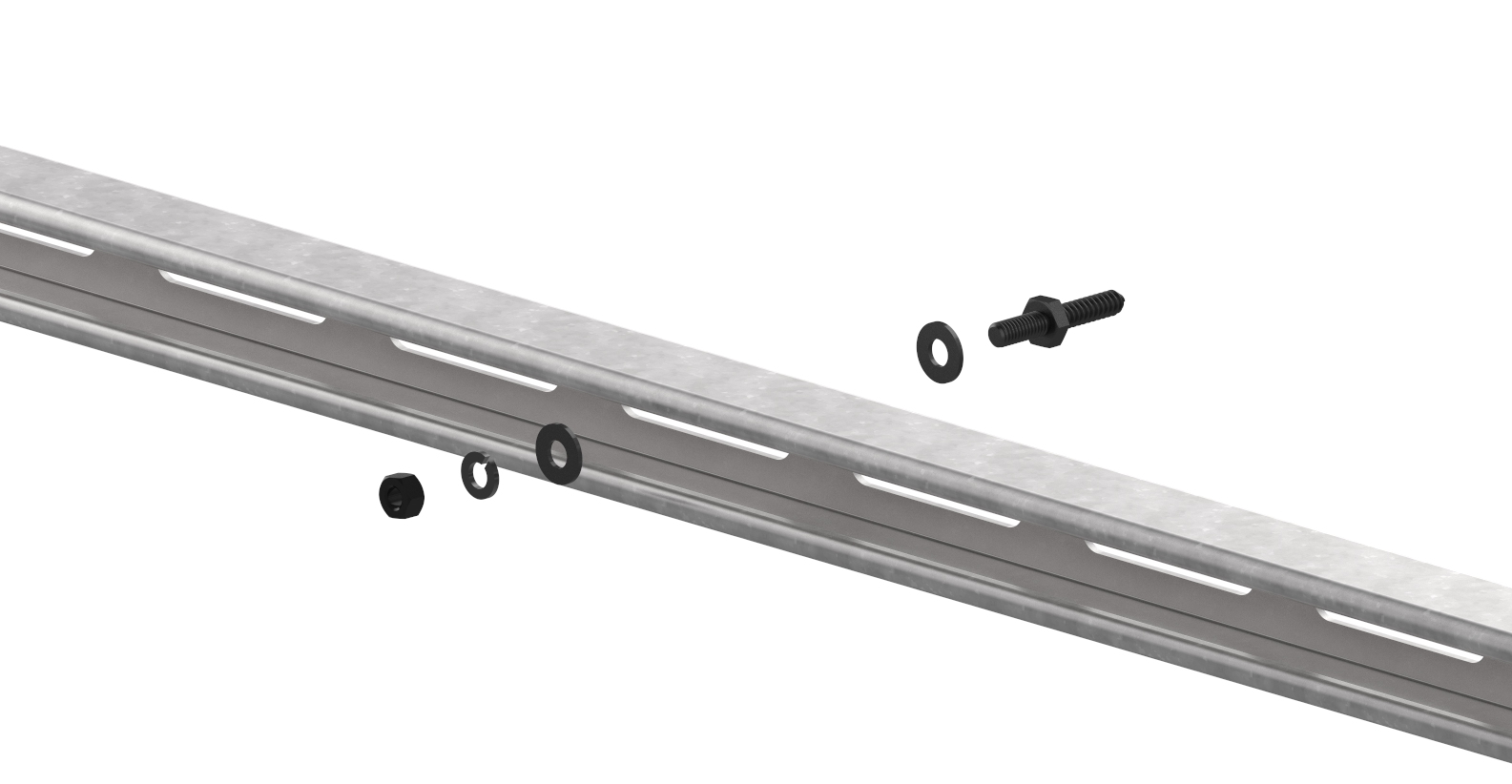

Exploded view of the StrutWall Wall Leveler hardware installed with channel strut

Wall Leveler

SW-WL-M-Z · INDOOR   |   SW-WL-M-S · OUTDOOR — NOT AVAILABLE

Floats the strut frame over uneven wall surfaces with up to 3/4-inch adjustment.

Technical details

System specifications

Application Modular framing for flat, serviceable LED video walls of virtually any size
Compatible strut channel To be used with standard 7/8-inch and 1-5/8-inch strut channel. Select the lower-profile 7/8-inch strut to position the LEDs closer to the structural wall.
Indoor construction Steel; zinc-plated finish; silver color
Outdoor availability Outdoor StrutWall is not available.
LED adjustments X, Y and Z alignment through adjustable left/right and center mounts
Recommended LED style Serviceable, front-access LED cabinets

Rear-access cabinet with red prohibition symbol
Rear-access: not compatible
Front-access cabinet with green check symbol
Front-access cabinets: compatibility review required
Strut sections Strut channel supplied by the installing contractor
