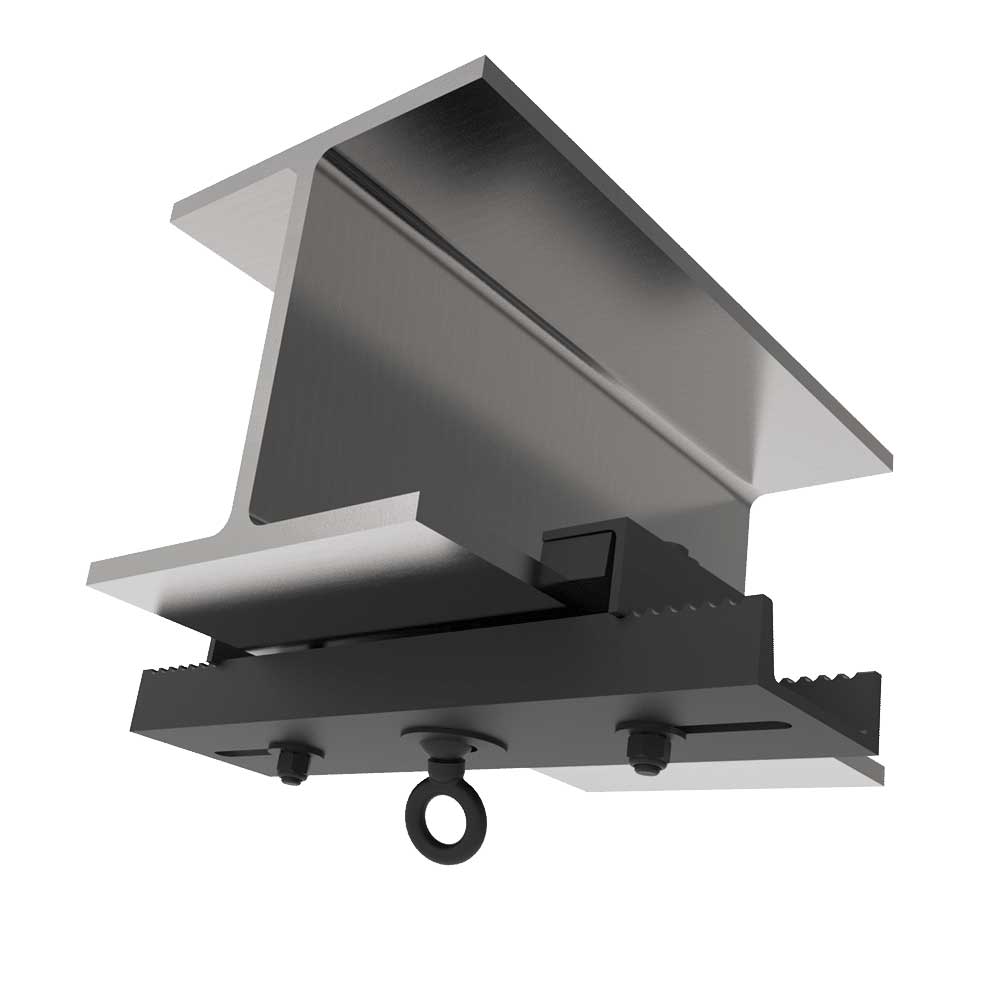

The Gimbaled Style beam clamp is unique in that it offers a gimballed swivel eye that accommodates up to 20 degrees of off-axis side loading in any direction without losing any of its working load.
The gimbal feature is especially predictable when bridling suspended objects from wire rope, rigging chain, span sets, etc.
The body of the clamp mounts flush underneath the building’s I-beams and adjusts to accommodate beam flange widths between 12” and 18”.
Datasheet InstallationPDF Reader| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: Alloy Steel Components | 1 pc 12”-18” Gimbled Beam Clamp |
| Width: 12” to 18” / 305mm to 457mm | 1 Kit Hardware Kit |
| VERTICAL WLL:2000 lbs / 908 Kg. WLL (Vertical) | |
| 20 DEG. WL: 2000 lbs / 908 Kg. WLL | |
| 45 DEG. WL: 1200 lbs / 545 Kg. | |
| 90 DEG. WL: Do Not Exceed 65° | |
