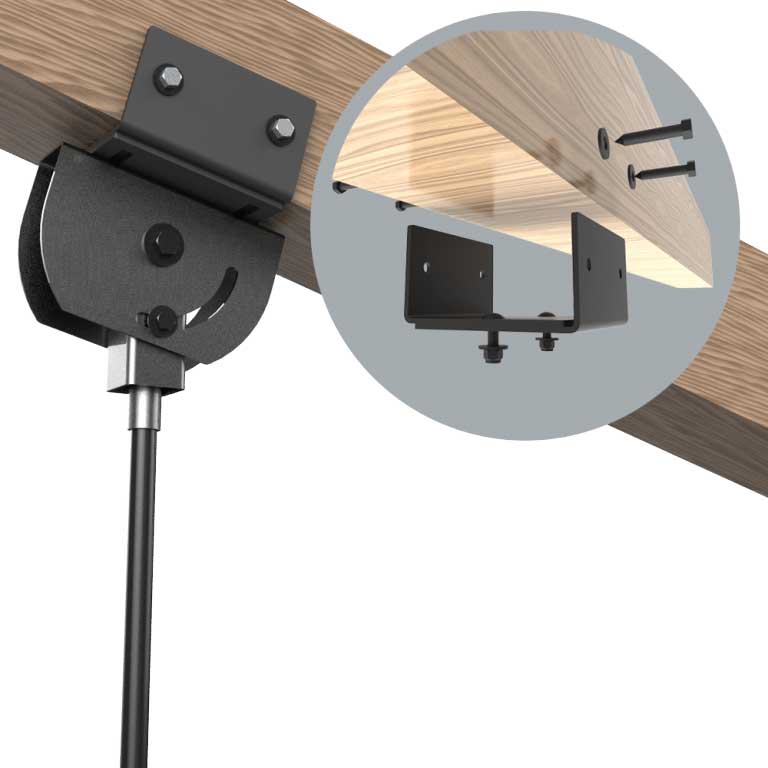

Beam Clamp – BC-GSA-100
6-10 inch Wood Beam Clamp

When suspending audio video or lighting applications from wooden beams Adaptives BC-GSA-100 beam clamp makes installations safe and easy. Once beam clamp is secured to wooden beam, multiple suspension mounts can be attached depending on the application.

Downloads
Standard Features
Specifications
Dimensions
Optional Accessories
Videos

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Features

  • Mounts to Wood Beams 6-10”
  • Adapts to MP-500NPT-GSA

Specifications

SPECIFICATIONS PACKAGE CONTENTS
Material: Structural Steel 2 pcs L Bracket Mounting Plate
Finish: Powder Coat 2 pcs 3/8 -16X1.25” Carriage Bolt
 Color:Black 2 pcs 3/8 – 16 Nyloc Nut
WLL: 100lb 2 pcs 3/8” Flat Washer
Design Factor: 5:1 1 pc Instruction Manual
Pack Count: 1

Dimensions

Optional Accessories

  • Safety Cable Kits
  • Ceiling Attachments
  • MP-500NPT-GSA
