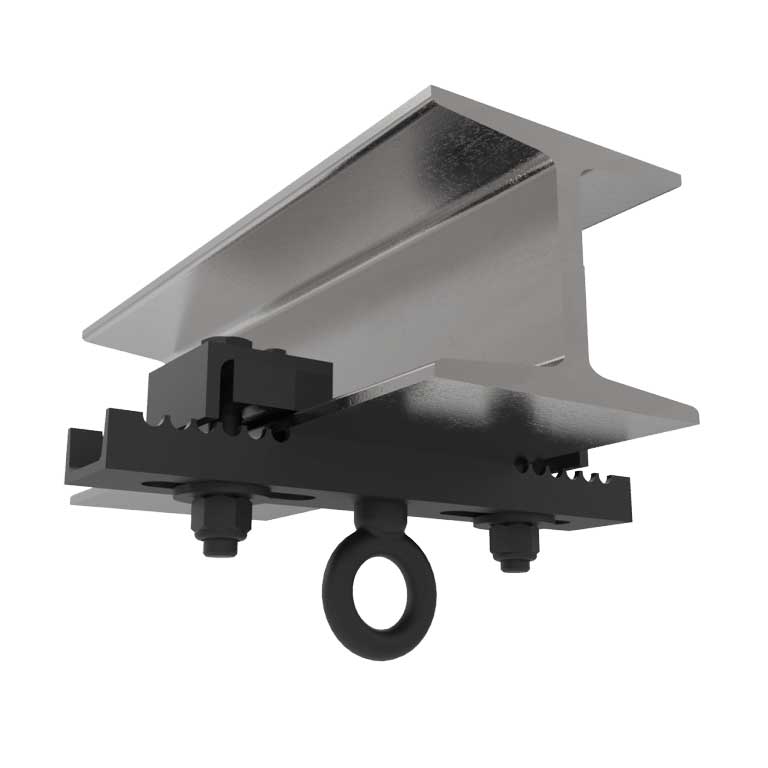

Adaptive’s low-profile channel style beam clamps anchor permanently to structural I-Beams and provide a safe, predictable method for suspending loads from overhead.
The channel style beam clamp is adjustable to beam flange widths ranging from between 7” and 12” (178mm to 305mm). The body of the clamp mounts flush underneath the beam’s flange and is equipped with a load-rated swiveling shoulder eye bolt that rotates in the direction of the load to minimize side loading.
Specify this beam clamp for many types of indoor suspensions from horizontally oriented I-Beams, including wire rope assemblies, bridles, rigging chain and other equipment.
A variety of spacers are included in the kits to accommodate beam flange thickness from .1875 to 1.0” (5mm to 25mm) and the only tools that are needed to install the clamp is a 1.0” and a 7/16” hex wrench.
Datasheet InstallationPDF Reader| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: All Steel Components | 1 pc Beam Clamp Channel |
| Width: (BC3-8) 3” to 8” / 76mm to 203mm | 2 pcs Locking Angle Plate |
| WLL: 2100 lb / 952.544 Kg WLL (VERTICAL) | 2 pcs Flat Washer, 5/8” |
| Finish: Powder Coat | 2 pcs Nyloc Nut, 5/8-11 |
| Color: Black | |
| Design Factor: 4:1 | |
| 45 DEG. WL: 1680 lb / 762.0352 Kg | |
