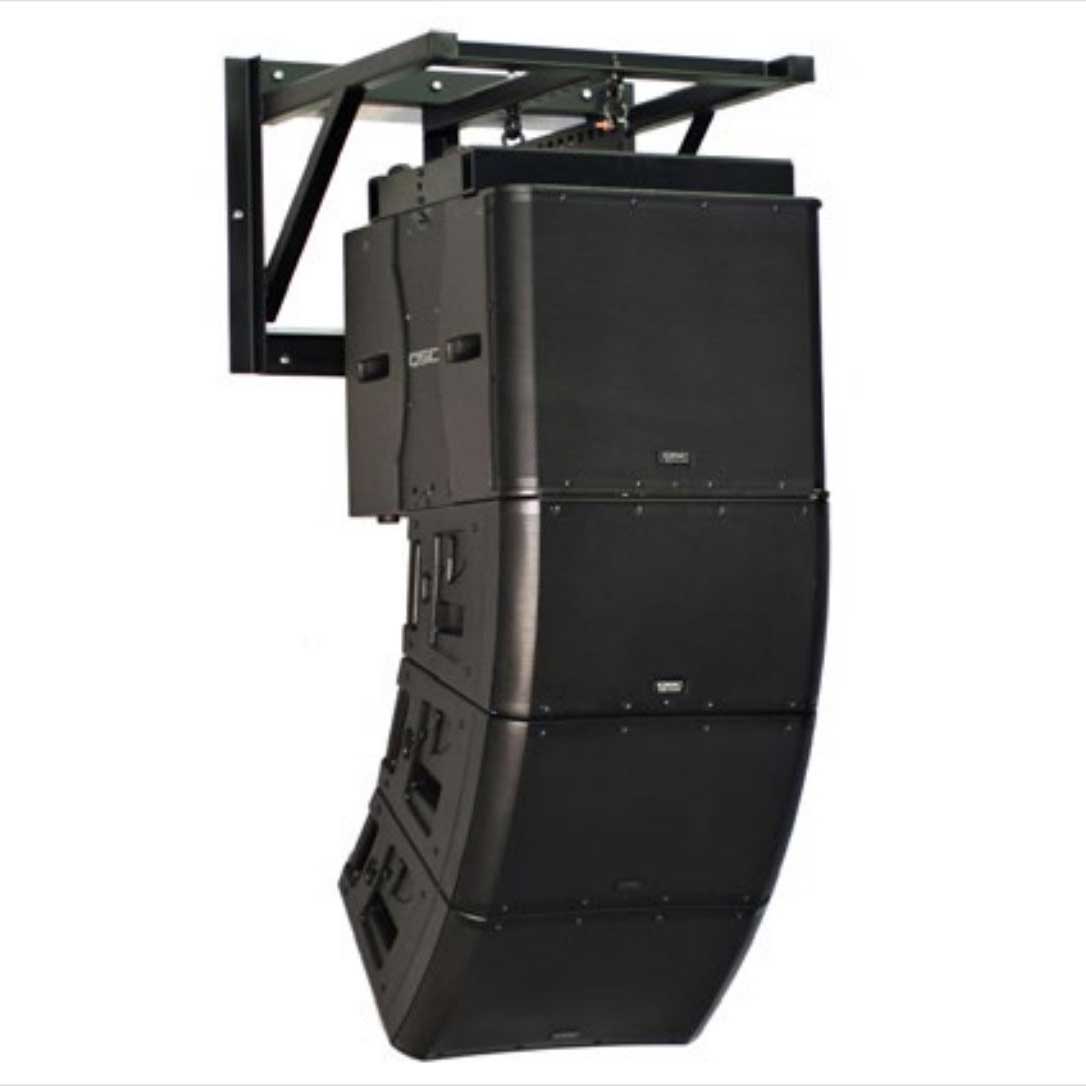

When rigging line arrays overhead is not practical, use the SAS-750-WM Steerables Line Array Wall Mount to install and aim line arrays up to 28” wide on either side of a stage or building. Line Arrays suspend from their own top grid or it’s rigging points, which allow for the desired tilt angle. Pan angles, up to 90 degrees left or right are achieved by way of an upper cross arm that aims the line array into the desired direction.
Datasheet InstallationPDF Reader| Material: Structural alloy steel | 1 pc Wall Mount Frame | |
| Finish: Powder Coat | 1 pc Cross Arm Kit | |
| Color: Black | ||
| Pan Angle: Up to +/- 90 degrees | ||
| Tilt Angle: See line array specifications | ||
| WLL: 750 lb / 340 Kg | ||
| Design Factor: 5:1 | ||
| Product Weight: 122 lb / 55.5 Kg |
